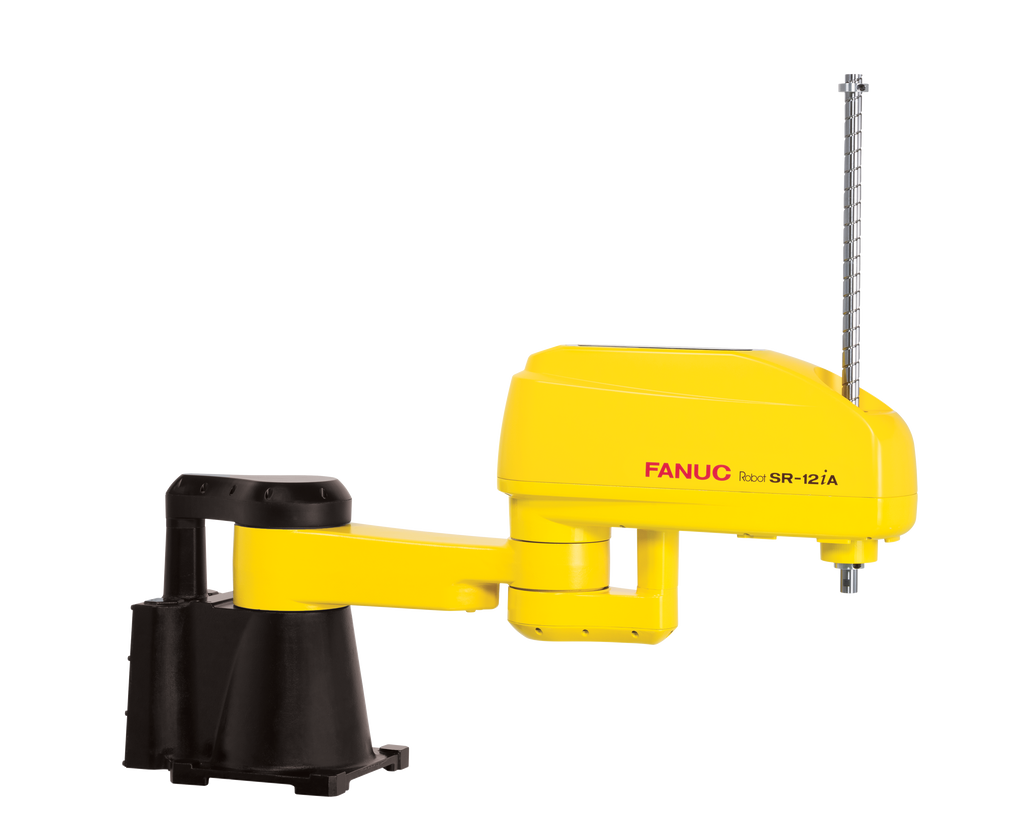

FANUC SR-12iA 4-Axis SCARA Robot
The FANUC SR-12iA is a 4-axis SCARA robot with a 12 kg payload and 900 mm reach, designed for high-speed assembly, pick-and-place, and other automated manufacturing processes. Its combination of high payload capacity, long reach, and compact footprint makes the SR-12iA well suited for applications where floor space is limited.
Southwestern PTS is a FANUC Authorized System Integrator and can provide the SR-12iA as a standalone robot or design and integrate a custom turnkey robotic cell or machine around the robot. Contact us for SR-12iA pricing, lead times, and integration options for your application.
Specifications:
• Payload: 12 kg
• Reach: 900 mm
• Repeatability: ±0.01 mm on linear axes
• Axes: 4
• Footprint: 280 x 364 mm
• Controller: FANUC R-30iB Compact Plus
• Mounting: floor or angle mount, with a wall-mount option available
Applications: Assembly, pick-and-place, packaging, dispensing, inspection.
FAQ:
FANUC SR-12iA vs SR-20iA SCARA robots — which should I use?
- Choose the Fanuc SR-20iA SCARA robot for heavier parts or longer reach, and the Fanuc SR-12iA SCARA robot for a smaller footprint and lower cost. The SR-20iA offers 20 kg payload and 1100 mm reach, while the SR-12iA offers 12 kg payload and 900 mm reach. Factor in end-of-arm tooling weight when calculating required payload.
Can the FANUC SR-12iA SCARA robot be used in food or washdown or foodgrade environments?
- Yes, with FANUC's Environmental or Foodgrade options. The standard SR-12iA is not rated for washdown, but the Environmental variant adds an IP65 rating, white epoxy coating, and corrosion-resistant hardware for food-grade or harsh-environment applications. The Foodgrade option uses NSF H1 foodgrade lubricant, is coated with white epoxy paint, and features a IP65 rating. Specify the Environmental or Foodgrade options ption when requesting a quote if this applies to your process.
Can a FANUC SR-12iA work with moving parts, like a conveyor?
- Yes. The FANUC SR-12iA can be integrated with conveyors, smart conveyors, or manual load stations for pick-and-place on moving parts. These applications typically require machine vision to track part position and orientation in real time.
How much does a FANUC SR-12iA cost?
- Pricing for the FANUC SR-12iA depends on configuration — standalone robot, end-of-arm tooling, safety systems, or a full turnkey cell. Contact Southwestern PTS for a quote tailored to your application and payload/reach requirements.
