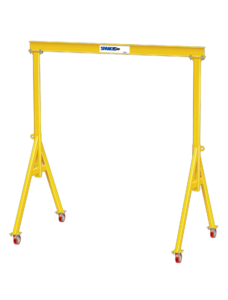

- Overall Span 25'
- Span Between Wheel Centers 24' 1"
- Clear Span 23' 7"
- Overall Height Under Beam 12' 10"
- Overall Height 14' 3"
- Beam Size S16X50#, Beam Flange Width 7-1/8"
- Tread Width 6' 6", Wheel Dia. 8'
- Crane Height Adjustments: Adjusting in 6-inch increments, height adjustment kits use spring-loaded steel locking pins that automatically engage when height positioning holes are reached; adjust heights for specific lifts, uneven floors, or to move through doorways
- Adjustable Spans: Standard on aluminum cranes, adjustable spans are optional on steel cranes; adjustable spans allow the crane to be shortened for transport down narrow aisles
- Heavy-Duty Casters: Four-position, swivel-lock casters with moldon polyurethane wheels provide excellent floor protection
