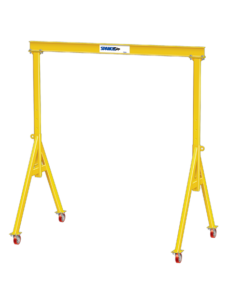

Spanco 3F2012-W A-Series Fixed Height 3 Ton Gantry Crane

  • Sale
  • Regular price $5,000.00


Specifications:
  • Overall Span 20'
  • Span Between Wheel Centers 19' 1"
  • Clear Span 18' 7", Overall Height Under Beam 12' 10", Overall Height 14' 3", Beam Size S16X50#, Beam Flange Width 7-1/8", Tread Width 6' 6", Wheel Dia. 8'

Features:

  • Crane Height Adjustments: Adjusting in 6-inch increments, height adjustment kits use spring-loaded steel locking pins that automatically engage when height positioning holes are reached; adjust heights for specific lifts, uneven floors, or to move through doorways
  • Adjustable Spans: Standard on aluminum cranes, adjustable spans are optional on steel cranes; adjustable spans allow the crane to be shortened for transport down narrow aisles
  • Heavy-Duty Casters: Four-position, swivel-lock casters with moldon polyurethane wheels provide excellent floor protection
