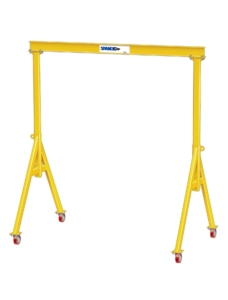

Spanco 3A4012-W A-Series Adjustable Height 3 Ton Gantry Crane

  • Sale
  • Regular price $9,480.00


Features:
  • Overall Span 40'
  • Span Between Wheel Centers 39' 1"
  • Clear Span 38' 6"
  • Overall Height Under Beam (Min. 9' 4") (Max. 12' 10")
  • Overall Height (Min. 11' 4") (Max. 14' 10")
  • Beam Size W24X84#, Beam Flange Width 9"
  • Tread Width 6' 6", Wheel Dia. 8'

Specifications:

  • Crane Height Adjustments: Adjusting in 6-inch increments, height adjustment kits use spring-loaded steel locking pins that automatically engage when height positioning holes are reached; adjust heights for specific lifts, uneven floors, or to move through doorways
  • Adjustable Spans: Standard on aluminum cranes, adjustable spans are optional on steel cranes; adjustable spans allow the crane to be shortened for transport down narrow aisles
  • Heavy-Duty Casters: Four-position, swivel-lock casters with moldon polyurethane wheels provide excellent floor protection
